How windproof are the umbrellas?

Practical experience values: Ø 2.5 m up to 100 km/h, Ø 3.0 m up to 65 km/h. Important — an umbrella is still a sail: when a storm builds, close it or take it down in good time.

Which base suits which ground?

Soil and clay: SLAM RAM ground spike. Asphalt and concrete: heavy folding stand or TRIPOD TITAN. The TRIPOD fits only the Worker, Pipeliner, Pipeliner Heavy and Heavy.

Are custom colours or my company logo possible?

Yes. The Rectangular umbrella is available with your company logo on request, the Worker also in special and fan designs. Just get in touch.

Weather protection · Landscaping & Plant construction

UMBRELLA

CARRIES THE SNOW LOAD.

Sturdy frame — no sagging, no collapse, no standstill.

100km/h

Wind-tested in use

36ribs

Reinforced frame

B1DIN 4102

Flame-retardant

5Models

One premium class

Scroll

Has limits✶350 g/m²✶Stable✶UV-resistant✶Wind-stable✶Rugged mechanism✶All-weather ready✶Tip-proof✶Reinforced ribs✶Snow-safe✶All-weather✶Fibreglass ribs✶Rainproof✶Not a roof✶Storm-tested✶Continuous use✶36 ribs✶Anchor it storm-proof!✶Mobile weather protection✶Long-lasting✶Team shade✶Break-resistant, not unbreakable✶Tear-resistant✶Aluminium frame✶Sun protection✶Hail-resistant — to a degree✶Needs anchoring✶Rot-resistant✶Snow-load tested✶Large shade✶Pro quality✶Spark-proof✶Still a sail✶Year-round✶Not indestructible✶Has limits✶350 g/m²✶Stable✶UV-resistant✶Wind-stable✶Rugged mechanism✶All-weather ready✶Tip-proof✶Reinforced ribs✶Snow-safe✶All-weather✶Fibreglass ribs✶Rainproof✶Not a roof✶Storm-tested✶Continuous use✶36 ribs✶Anchor it storm-proof!✶Mobile weather protection✶Long-lasting✶Team shade✶Break-resistant, not unbreakable✶Tear-resistant✶Aluminium frame✶Sun protection✶Hail-resistant — to a degree✶Needs anchoring✶Rot-resistant✶Snow-load tested✶Large shade✶Pro quality✶Spark-proof✶Still a sail✶Year-round✶Not indestructible✶

Ø 3,0 m✶Made for the site✶Asphalt-ready✶From stock✶SLAM RAM✶Pro umbrellas✶Pro standard✶Sand✶No miracle✶Rectangular shape✶Ø 2,5 m✶Fast delivery✶Landscaping✶Not a bunker✶Sewer construction✶Fully welded✶Wide footprint✶Slope levelling✶5 colours✶Ground spike advisable✶Soil✶Heavy duty✶Steel base pole✶Any ground✶TRIPOD TITAN✶Solid bolts✶up to 100 km/h✶Europe-wide✶Anchoring is a must✶Forestry✶Flame-retardant✶Ground decides✶Internal impact mechanism✶PE transport tube✶Anchoring matters✶Complete set✶Loam✶Logo print✶Civil engineering✶Bestseller✶Signal orange✶Concrete-ready✶Steel mast✶No sledgehammer✶Welder-grade✶Pipeline construction✶Ø 3,0 m✶Made for the site✶Asphalt-ready✶From stock✶SLAM RAM✶Pro umbrellas✶Pro standard✶Sand✶No miracle✶Rectangular shape✶Ø 2,5 m✶Fast delivery✶Landscaping✶Not a bunker✶Sewer construction✶Fully welded✶Wide footprint✶Slope levelling✶5 colours✶Ground spike advisable✶Soil✶Heavy duty✶Steel base pole✶Any ground✶TRIPOD TITAN✶Solid bolts✶up to 100 km/h✶Europe-wide✶Anchoring is a must✶Forestry✶Flame-retardant✶Ground decides✶Internal impact mechanism✶PE transport tube✶Anchoring matters✶Complete set✶Loam✶Logo print✶Civil engineering✶Bestseller✶Signal orange✶Concrete-ready✶Steel mast✶No sledgehammer✶Welder-grade✶Pipeline construction✶

SUN

PLENTY OF SUN.

Shade for crew and material.

Technical schematic: Worker work umbrella, Ø 2,5 m, wind-resistant up to 100 km/h

Sketch (blueprint): Worker work umbrella, Ø 2,5 m, 36 ribs

SketchSchematicWorker · Ø 2,5 m · 36 ribs

Drag

The core

See what is inside!

Sketch on the left, schematic on the right — grab the handle and compare. 36 ribs span a surface the wind cannot grab.

36 ribs

In the premium class — clipped into the canopy fabric.

up to 100 km/h

Ø 2,5 m wind-proof, Ø 3,0 m up to 65 km/h. Field values from our own use.

Stiff surface

Distributed load keeps the umbrella stiff — no flapping, no sagging.

Models

Site umbrellas: three frames, twelve umbrellas.

Three frame classes, twelve umbrellas: Worker, Pipeliner and Heavy form the premium class with 36 ribs, sealed seams and a transport tube. Plus the reinforced version, German-made, and the rectangular umbrella for long workpieces. From work umbrella to welder umbrella to weather-protection umbrella — the right model for every site.

3frames

12umbrellas

11colours

Bestseller

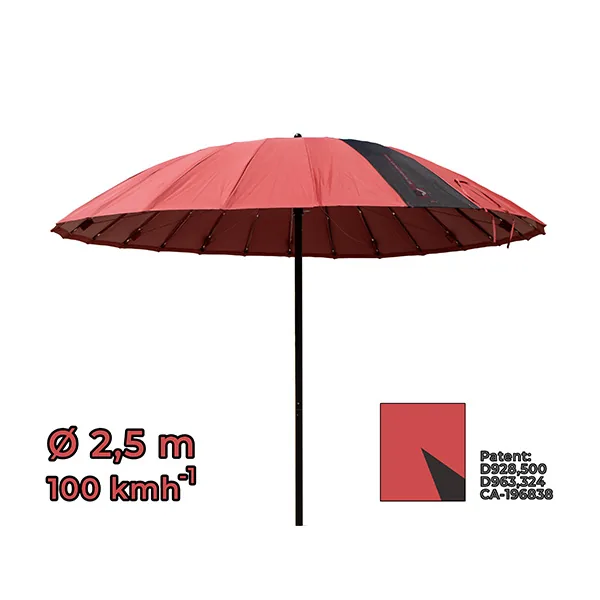

WORKER

up to 100 km/h

The best-selling work umbrella: light, quick to set up, site-tough — the all-rounder for fitter and service crews at the work point.

Ø 2,5 mSteel base pole36 ribsup to 100 km/h

To the shop

Red Olive Teal Football Baseball

For the seam Flame-retardant

PIPELINER

up to 100 km/h · Ø 3,0 m: 65

Welding, cutting, grinding: the flame-retardant canopy shrugs off flying sparks — both sizes are flame-retardant.

Ø 2,5 · 3,0 mSteel base pole36 ribsup to 100 km/h

To the shop

Ø 2,5 m Ø 3,0 m

Maximum area

HEAVY

up to 65 km/h

Ø 3,0 m over multi-person teams and large workpieces. Steel base pole with extension tube — flame-retardant as the Pipeliner Heavy.

Ø 3,0 mSteel base pole36 ribsup to 65 km/h

To the shop

Grey Khaki Orange

German-made Flame-retardant

REINFORCED

up to 38 km/h

Aluminium square-tube profiles with sturdy fibreglass rib ends — noticeably tougher, flame-retardant, German-made. Round in Ø 2,5 and 3,0 m.

Ø 2,5 · 3,0 mAluminium square tubeFibreglass endsGermany

To the shop

Ø 2,5 m Ø 3,0 m

Square & long Flame-retardant

RECTANGULAR

up to 25 km/h

Rectangular surface for long workpieces and angular setup spots. Entry-level version with Paragon ribs, flame-retardant — with company logo on request.

3,0×2,0 · 2,5×2,5 mRectangularParagon ribsLogo on request

To the shop

3,0 × 2,0 m 2,5 × 2,5 m

Our recommendation

How much can it take?

Drag the wind up — above, the umbrellas grey out that we would no longer recommend at that wind.

12 / 12 hold

Worker Ø 2,5 m · Teal

Heavy Ø 3,0 m · Orange

Worker Ø 2,5 m · Olive

Reinforced version Ø 3,0 m

Heavy Ø 3,0 m · Khaki

Worker Ø 2,5 m · Red

Reinforced version Ø 2,5 m

Rectangular umbrella 3 × 2 m

Pipeliner Ø 3,0 m · Blue

Heavy Ø 3,0 m · Grey

Rectangular umbrella 2,5 × 2,5 m

Pipeliner Ø 2,5 m · Black

0km/hCalm

0254065100

Accessories · Stand systems

Only the right stand makes it safer.

Pick the ground type — or a stand. Either shows what fits together. From topsoil to asphalt.

Ground type

Drive-in ground spike

Ground spike, basic

Suitable for

Standard solution for natural ground. Hand-driven, affordable, quick to set.

To the shop

Impact ground spike

SLAM RAM

Suitable for

Solid steel, hammer head — for everything from soft ground to compacted subsoil. Usable in the trench too.

To the shop

Tripod folding stand

TRIPOD TITAN

Suitable for

No driving in needed. 1.21 m footprint, 8.2 kg, quick setup. Fits only Worker, Pipeliner, Pipeliner Heavy and Heavy — designed for their pole diameter.

To the shop

Heavy folding stand

Folding stand, galvanised

Suitable for

15 kg, made in Germany, socket up to 55 mm. For 2,5 and 3,0 m umbrellas on any ground without driving in.

To the shop

An umbrella stays a sail. However sturdily it is built — with enough wind, every surface becomes a target for the wind.

The right stand makes the umbrella stand cleaner and safer. But it does not make it indestructible or accident-free. Even with a good stand an umbrella can tip, wander or fall over — a stand is no "holds-everything" device.

When a storm rolls in, heroics do not help: close, secure or take it down in good time.

The km/h figures come from practice and are to be understood as experience values, not a guarantee. In the end, the on-site risk assessment always decides.

Occupational safety · Duty

Weather protection is a duty. Not a nicety.

Anyone who has people work outdoors must assess the hazard from weather and take measures — § 5 ArbSchG, ArbStättV, ASR A3.5, DGUV Vorschrift 1. And under the TOP principle, the technical solution comes first: fixed weather protection over the workplace.

38.000+recognised cases of white skin cancer from UV at work (BK 5103) up to 2022. Weather protection is health protection.

UV radiation

White skin cancer has been a recognised occupational disease since 2015 (BK 5103). Protection from UV index 3 — from March to October, especially between 11 a.m. and 4 p.m.

Heat

ASR A3.5 grades it clearly: above 26 °C measures should be taken, above 30 °C they must be — above 35 °C the workplace is unsuitable without protection.

Storm & wind

Limits are set per task; from about wind force 8 (≈ 62 km/h) it gets critical. In a thunderstorm: stop work immediately.

Cold & wet

Weather-protective clothing down to −5 °C, below that cold-protective gear. Wet and wind worsen the chilling — a roof keeps crew and material dry.

The TOP principle — in this order

Technical

Umbrella, tent, canopy — works regardless of behaviour. The first and most effective level.

That is exactly what the work umbrella is for.

Organisational

Shift working hours, plan breaks, rotate tasks.

Personal

Protective clothing, sunscreen, headwear — the last level.

Full guide Overview, no substitute for legal advice or case-by-case assessment. ArbSchG, ArbStättV, ASR A3.5 and the relevant DGUV rules apply.

Practice · Decision

Which umbrella for your industry?

Industry first, then the model — not the other way round. That avoids a wrong buy. Pick your use, we name model, size and colour.

Pipeline welding →Pipeliner

Ø 2,5 mBlack up to 100 km/h flame-retardant

Also flame-retardant

This is a recommendation, not a dogma — just quick guidance on which direction to think in. For civil engineering and many other tasks, other models fit just as well depending on the situation. Just tell us your use and we will advise personally.

How to decide — in 4 steps

Industry

Which task? Welding, surveying, civil engineering, service …

Flying sparks

Yes → flame-retardant (Pipeliner · Reinforced · Rectangular). No → Worker or Heavy.

Ground

Soil/loam → SLAM RAM. Asphalt/concrete → folding stand.

Size

1–2 people → Ø 2,5 m. Team/large workpiece → Ø 3,0 m. Angular → rectangular.

Full practice guide All site umbrellas

In use

Pipeline welding

Dry seam, wind-still workplace — weld quality is not left out in the rain.

Shaft & sewer work

Shaft head covered, entry dry, material protected — in any weather.

Assembly & material protection

Tools, equipment and crew kept dry. No packing up at every shower.
